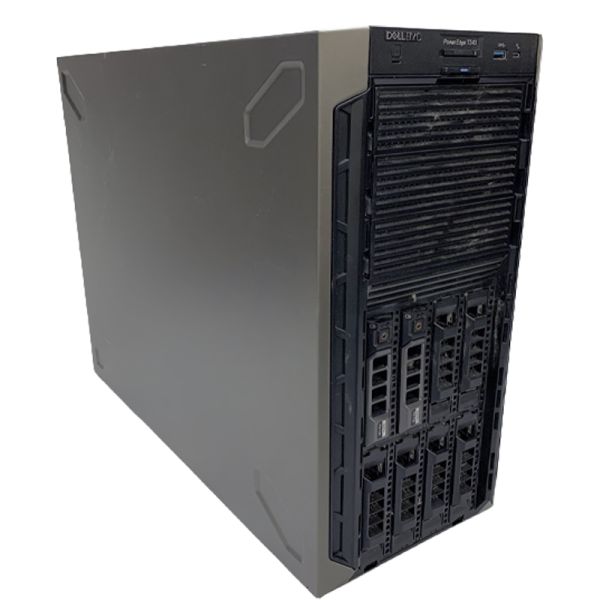

High-quality entry-level tower server featuring Intel Xeon E-2200 processors and DDR4 memory for reliable business computing infrastructure.
| Processor |
1 processor from the following: Intel Xeon E-2200 product family, Intel Pentium, Intel Core i3, Intel Celeron |
| Memory |
4x DDR4 DIMM slots, supports UDIMMs, speeds up to 2666MT/s, 64GB max. supports registered ECC |
| Storage Controllers |
Internal controllers: PERC H730P, H330, HBA330 (non-RAID)
Software RAID: PERC S140
External HBAs: 12Gbps SAS HBA (non-RAID)
Boot Optimized Storage Subsystem (BOSS): 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only)
Internal Dual SD Module
|

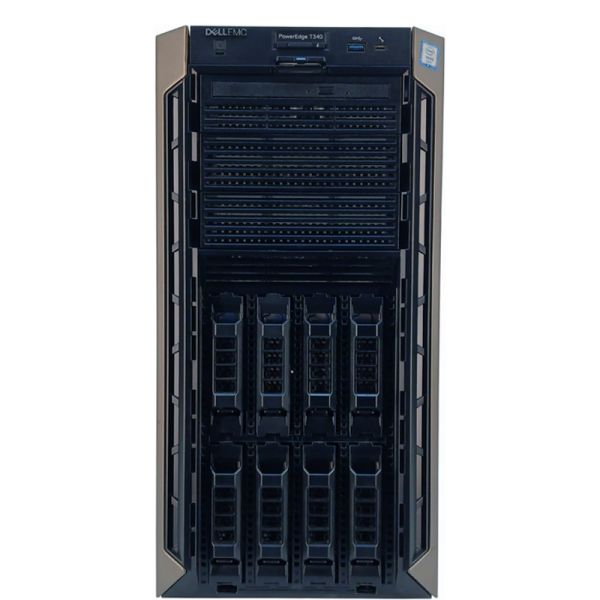

| Drive Bays |
Up to 8 x 3.5" hot-pluggable bays (also supports 2.5" HDD in 3.5" hybrid drive carrier) |
| Power Supplies |
2x Hot-Plug-Redundant 495W PSUs or Single Cabled 350W PSU |
| Dimensions |
Form factor: Tower server
Chassis height: 430.3mm (16.94 in)
Chassis width: 218mm (8.58 in)
Chassis depth: 603 mm (23.7 in)
Note: These metrics do not include PSU handle, bezel, or tower foot
Chassis weight: 26 kg (55.67 lb.)
|
| Embedded Management |
iDRAC9, iDRAC Direct |
| Bezel |
Optional security bezel |
| OpenManage Software |
OpenManage Enterprise, OpenManage Power Center, OpenManage Mobile (requires OM Enterprise) |
| Integrations and Connections |
Integrations: Microsoft System Center, VMware vCenter, BMC Truesight (available from BMC), Red Hat Ansible
Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool/OMNIbus
|
| Tools |
iDRAC Service Module, iDRAC RESTful API with Redfish, OpenManage Server Administrator, Dell EMC Repository Manager,
Dell EMC System Update, Dell EMC Server Update Utility, Dell EMC Update Catalogs, Dell EMC RACADM CLI, IPMI Tool
|
| Security |
TPM 1.2/2.0 optional, Cryptographically signed firmware, Silicon Root of Trust, Secure Boot,
System Lockdown (requires iDRAC Enterprise or Datacenter), Secure Erase
|

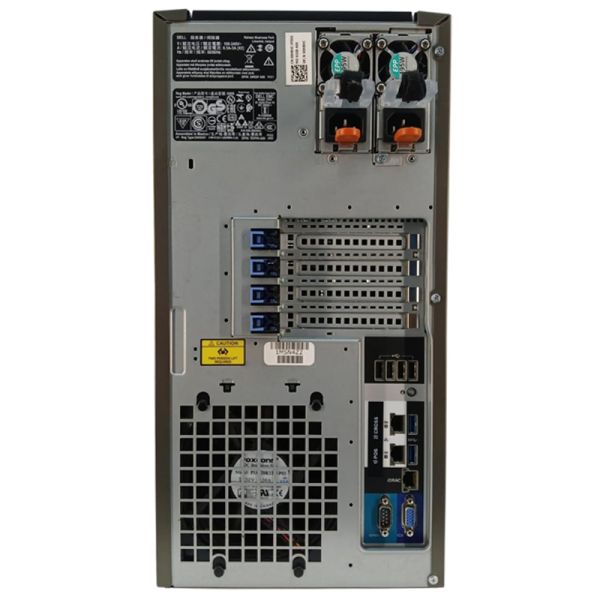

| I/O & Ports |
Networking Options: 2 X 1GbE LOM
Front Ports: 1x USB 3.0, 1x iDRAC micro USB 2.0 management port
Rear Ports: 2x USB 3.0, 4x USB 2.0, VGA, serial connector
Internal USB: 1x internal USB 3.0
4 x PCIe Slots: 1x8 Gen3 (x16 connector) FH/HL, 1x8 Gen3 (x8 connector) FH/HL, 1x4 Gen3 (x8 connector) FH/HL, 1x1 Gen3 (x1 connector) FH/HL
|
| Supported Operating Systems |
Certify XenServer, Citrix XenServer, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux,
Ubuntu Server, SUSE Linux Enterprise Server, VMware ESXi
|
