Dell PowerEdge R670 1U Rack Server with Intel Xeon 6 Processors, 32 DDR5 DIMM Slots, and 8 EDSFF E3.S NVMe Drive Bays

Product Categories
Ideal Future (beijing) Information Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Dell PowerEdge R670 1U Rack Server with Intel Xeon 6 Processors, 32 DDR5 DIMM Slots, and 8 EDSFF E3.S NVMe Drive Bays

Delivery Time : Quantity (pieces) 1-10 for around 15days, > 10, to be negotiated

Drive bays : No Backplane configuration • Up to 8 x EDSFF E3.S NVMe max 491.52 TB also with FIO configuration Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB • Up to 20 x EDSFF E3.S Gen5 NVMe max 1228.8 TB • Up to 8 x 2.5 inch SATA/NVMe Direct/NVMe Raid max 491.52 TB • 8

Supply Ability : Quantity (pieces) 1-10 for around 15days, > 10, to be negotiated

Brand Name : Dell

MOQ : 1

Place of Origin : China

Model Number : PowerEdge R670

Memory slots : 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s

Warranty : 3 Years

Form Factor : 1U Rack Serverr

Payment Terms : T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;

Packaging Details : Carton with waterproof warpped

Processor : Two Intel Xeon 6 Processors with up to 144 E-cores or 86 P-cores per processor

Storage Controllers (RAID) : Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs or USB • Internal controllers: Front PERC H965i, Front PERC H975i, Front PERC H365i

Price : $16,699.02/pcs

Contact Now

Dell PowerEdge R670 Rack Server
High Efficiency 1U Server Scalable Hardware for Enterprise IT Infrastructure
Product Images
Dell PowerEdge R670 1U Rack Server with Intel Xeon 6 Processors, 32 DDR5 DIMM Slots, and 8 EDSFF E3.S NVMe Drive Bays Dell PowerEdge R670 1U Rack Server with Intel Xeon 6 Processors, 32 DDR5 DIMM Slots, and 8 EDSFF E3.S NVMe Drive Bays Dell PowerEdge R670 1U Rack Server with Intel Xeon 6 Processors, 32 DDR5 DIMM Slots, and 8 EDSFF E3.S NVMe Drive Bays Dell PowerEdge R670 1U Rack Server with Intel Xeon 6 Processors, 32 DDR5 DIMM Slots, and 8 EDSFF E3.S NVMe Drive Bays Dell PowerEdge R670 1U Rack Server with Intel Xeon 6 Processors, 32 DDR5 DIMM Slots, and 8 EDSFF E3.S NVMe Drive Bays
Technical Specifications
Processor
Two Intel Xeon 6 Processors with up to 144 E-cores or 86 P-cores per processor
Memory
  • 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s
  • Supports registered ECC DDR5 DIMMs only
Storage Controllers
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs or USB
  • Internal controllers: Front PERC H965i, Front PERC H975i, Front PERC H365i

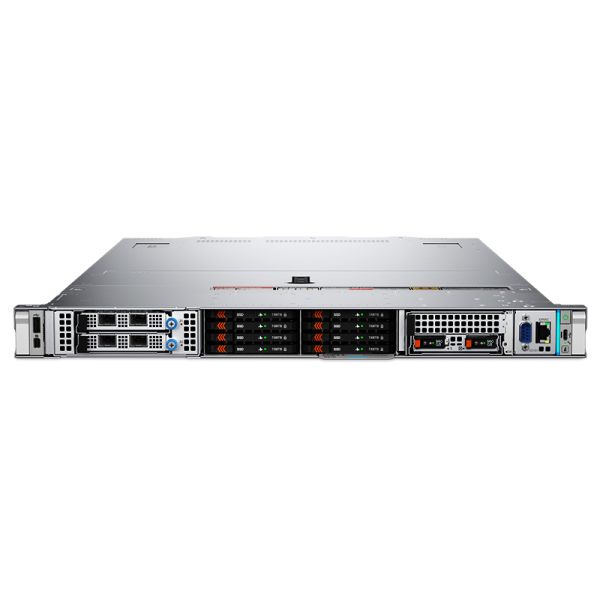

Front Bays
  • No Backplane configuration
  • Up to 8 x EDSFF E3.S NVMe max 491.52 TB also with FIO configuration
  • Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB
  • Up to 20 x EDSFF E3.S Gen5 NVMe max 1228.8 TB
  • Up to 8 x 2.5 inch SATA/NVMe Direct/NVMe Raid max 491.52 TB
  • 8 x 2.5-inch Universal 491.52 TB
  • Up to 10 x 2.5 inch SATA max 38.4 TB
  • Up to 2 x EDSFF E3.S Gen5 NVMe in the rear max 122.88 TB
Hot Swap Power Supplies
  • 1500 W Titanium 100-240 VAC or 240 VDC
  • 1100 W Titanium 100-240 VAC or 240 VDC
  • 800 W Titanium 100-240 VAC or 240 VDC
  • 1100 W Platinum 100-240 VAC or 240 VDC
  • 800 W Platinum 100-240 VAC or 240 VDC
  • 1800 W HLAC Titanium 200-240 VAC or 240 VDC*
  • 1500 W 277 VAC or 336 VDC*
  • 1400 W LVDC -48 - -60 VDC
Cooling Options
Air cooling and Direct Liquid Cooling
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate
Fans
  • High performance Silver (HPR SLVR) or Standard (STD) fans
  • Up to 4 sets (dual fan module) hot swappable fans
Dimensions and Weight
Height42.8 mm (1.69 inches)
Width482 mm (18.98 inches)
Weight20.42 kg (45.02 pounds)
Depth (rear I/O with bezel)816.92 mm (32.20 inches)
Depth (rear I/O without bezel)815.14 mm (32.09 inches)
Depth (front I/O without bezel)829.44 mm (32.66 inches)
Note: The front I/O configuration does not support the bezel.
Form Factor
1U rack server
Embedded Management
  • iDRAC
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • RACADM CLI
  • iDRAC Service Module (iSM)
  • Quick Sync 2 wireless module
  • NativeEdge Endpoint*
  • NativeEdge Orchestrator*
Bezel
Optional security bezel
Security
  • Cryptographically signed firmware
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Secure Boot
  • Secured Component Verification (Hardware integrity check)
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown
  • TPM 2.0 FIPS, CC-TCG certified
  • Chassis Intrusion Detection
Network Options
2 x OCP NIC 3.0 cards (optional) and 1GbE, 10GbE, 25GbE, 100GbE and 400GbE*
  • Slot 31: 1 x16 OCP 3.0 on front riser
  • Slot 32: 1 x16 OCP 3.0 on front riser
  • Slot 2: 1 x16 OCP 3.0
  • Slot 5: 1 x8 Gen5 OCP 3.0 or 1 x16 Gen5 OCP 3.0
BOSS
Slot 34: Front BOSS slot or Slot 3: Rear BOSS slot
GPU Options
Up to 3 x 75 W SW
DPU Options
  • NVIDIA BlueField-3 2x200 GbE B3220
  • NVIDIA BlueField-3 1x400 GbE B3140H
Ports
Front Ports:
  • 1 x USB 2.0 Type C port
  • 1 x USB 2.0 Type A port (optional)
  • 1 x Mini-DisplayPort (optional)
  • 1 x DB9 Serial (with front I/O configuration)
  • 1 x Dedicated ethernet port for iDRAC management

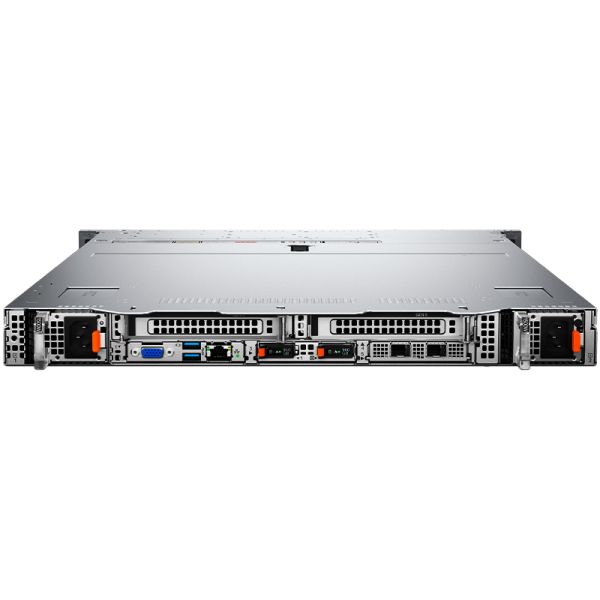

Rear Ports:
  • 1 x Dedicated ethernet port for iDRAC management
  • 1 x VGA
  • 2 x USB 3.1 Type A ports
Internal Ports:
  • 1 x USB 3.1 Type A port
PCIe Slots
Up to 2 x16 Gen5 PCIe slots:
  • Slot 31: 1 x16 Full Height - Half Length or Full Height - Full Length or 1 x16 OCP 3.0 on front riser
  • Slot 32: 1 x16 Full Height - Half Length or Full Height - Full Length or 1 x16 OCP 3.0 on front riser
Up to 3 x16 or 2 x8 Gen5 PCIe slots:
  • Slot 1: 1 x16 Full Height - Half Length or Full Height - Full Length or 3 x16 or 1 x8 Low Profile - Half Length
  • Slot 2: 1 x16 or 1 x8 Low Profile - Half Length or 1 x16 OCP 3.0
  • Slot 4: 1 x16 Full Height - Half Length or 1 x16 Low Profile - Half Length
Up to three PCIe slots:
  • Slot 1: 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length
  • Slot 2: 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length
  • Slot 3: 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length
Operating System and Hypervisors
  • Canonical Ubuntu Server LTS
  • Microsoft Windows Server with Hyper-V (P-Core only)
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi
  • Dell NativeEdge OS*
