PowerEdge R940xa 32x 2.5" Disk Server Configuration
High-performance rack server featuring four Xeon processors and extensive storage capabilities for enterprise data center environments.
Technical Specifications
| Processor |
Up to four 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores each |
| Memory |
48 DDR4 DIMM slots, Supports RDIMM/LRDIMM, up to 2933MT/s, 6TB max. Up to 12 NVDIMM, 384GB Max. Up to 24 Intel® Optane™ DC persistent memory PMem, max 12.28TB (15.36TB max with PMem and LRDIMM). Supports registered ECC DDR4 DIMMs only. |
| Storage Controllers |
Internal Controllers: PERC H330, H730P, H740P, HBA330
External Controllers: H840, 12 Gbps SAS HBA
Software RAID: S140
Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480GB
Internal Dual SD Module
|
| Drive Bays |

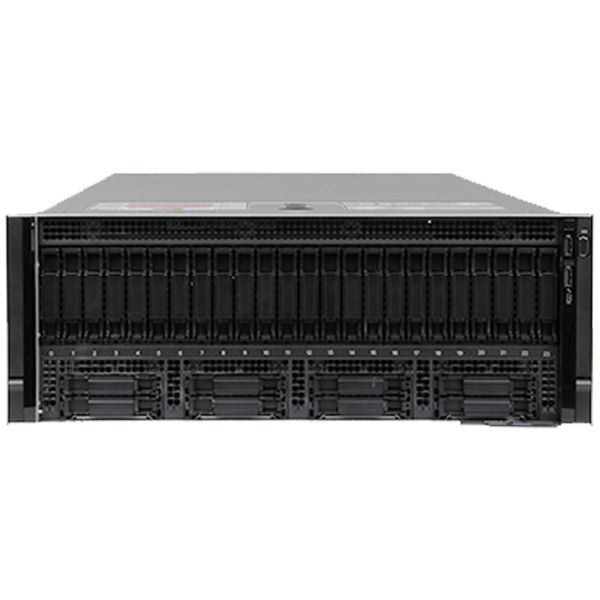

Front drive bays: Up to 8x 2.5" SAS/SATA (HDD/SSD) max 61.44TB, or up to 24 x 2.5" SAS/SATA (HDD/SSD) max 184.32TB, or up to 32 SAS/SATA (HDD/SSD) with up to 4 NVMe PCIe SSD max 245.76TB
|
| Power Supplies |
Gold 1100W -48VDC Platinum: 1100W, 1100W 240VDC2 1600W, 2000W, 2400W
Hot plug power supplies with full redundancy option
6 hot plug fans with N+1 redundancy
|
| Dimensions |
Form factor: Rack (4U)
Height: 174.3 mm (6.87")
Width: 441.16 mm (17.37")
Depth: 835.9mm (32.9")
Weight: 56.0kg (123.5lbs.)
*Dimensions do not include bezel
|

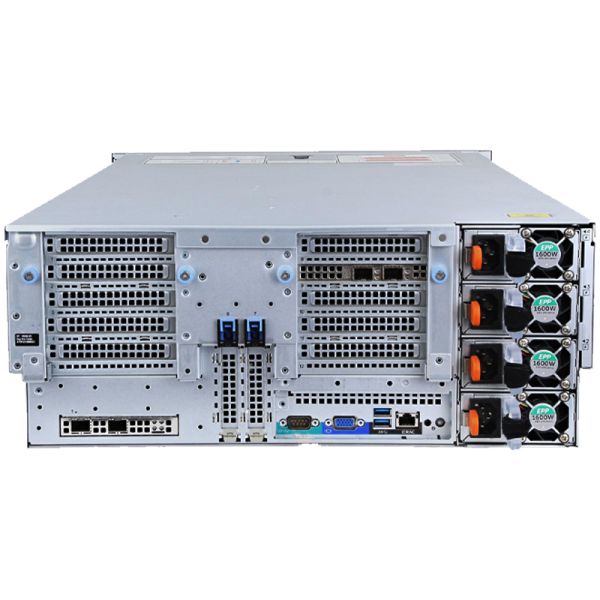

| I/O & Ports |
Network Daughter Card Options: 4 x 1GbE, 4 x 10GbE, 2 x 10GbE+2 x 1GbE, or 2 x 25GbE
Front ports: 1 x Dedicated iDRAC Direct Micro-USB, 2 x USB 2.0, 1 x VGA (Optional 1 x USB 3.0 only offered on the 8-drive configuration)
Rear ports: 1 x Dedicated iDRAC port, 1 x Serial, 2 x USB 3.0, 1 x VGA
Internal port: 1 x USB 3.0
Video card: 2 x VGA
PCIe: Up to 12 x Gen3 slots (6x16 slots or 2x16 + 10x8 slots)
|
Management & Software
Embedded Management
iDRAC9, iDRAC Direct, Quick Sync 2 BLE/wireless
OpenManage Software
OpenManage Enterprise, OpenManage Mobile, OpenManage Power Center
Integrations and Connections
Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight, Red Hat® Ansible® Modules
Connections: Nagios® Core & Nagios® XI, Microfocus Operations Manager I, IBM Tivoli Netcool/OMNIbus
Management Tools
Dell EMC Repository Manager, Dell EMC Update Package, Dell EMC System Update, Dell EMC Server Update Utility, iDRAC Service Module, iDRAC RESTful API with Redfish, OpenManage Server Administrator, OpenManage Storage Services
Security Features
- TPM 1.2/2.0 optional
- Cryptographically signed firmware
- Secure Boot
- Secure Boot System Lockdown (requires iDRAC Enterprise or Datacenter)
- Silicon Root of Trust
- Secure Erase
Accelerator Options
Up to 4 double-width GPUs or up to 4 double-width or 8 single-width full-height FPGAs
Supported Operating Systems
Canonical® Ubuntu® LTS, Citrix® Hypervisor, Oracle® Linux, Microsoft Windows Server® LTSC with Hyper-V, Red Hat® Enterprise Linux, SUSE® Linux Enterprise Server, VMware® ESXi
Optional Accessories
Optional LCD bezel or security bezel
